Screw Borehole Drilling Rig Max Depth 34meters Crawler Movement Way

Name: Screw Borehole Drilling Rig Max Depth 34meters Crawler Movement Way
Brand: T-works
Price: 1 USD

Screw Borehole Drilling Rig Max Depth 34meters Crawler Movement Way Manufactures

Brand Name : T-works

Model Number : KLB28-1000

Certification : ISO9001

Place of Origin : Hunan, China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, D/A

Supply Ability : 15units per month

Delivery Time : 40days

Packaging Details : Nude package for main body, plastic packages for key parts

Product name : bored pile rig

Color : Available

Max depth : 26meters

Max diameter : 800mm

Movement way : Crawler or step walking

After sale service : Engineer available any time

Quality gurantee : 12months for structure,6 months for parts

Contact Now

T-WORKS KLB28-1000 Screw Drilling Rig For Screw Bored Pile Of Drilling Hole With Max Depth 34meters

1. Products description

- Compsed by : Pulley group, colomn, inclined support leader, movement mechanism, rotary mechanism, winch complete set, operation cabin, hydraulic system , electrical system.

- KL series drilling rig is a kind of piling machinery for bored pile or screw pile with auger drill.

- The max drilling depth could reach 34m. A wild range of products could be chosen for your practical needs.

- Movement way: crawler or step walking.

- Lower cost and easy operation , high working effciency.

2. Application:

- Bridge auger drilling foundation construction

- Real estate bored pile or screw pile construction

- Hard layer bored pile foundation job,like decayed rock

3. Technical parameter for KLB26-800 for screw drilling rig:

KLB WALKING TYPE		KLB28-1000
Walking way		Electro-hydraulic step
Max drilling depth		28m
Max drilling diameter		￠1000mm
Max output torque		65KN.m
Rod rotated speed		20r/min
Allowed lifting force		640KN
Power of power head		55KW*2
Reductor of power head		ZZSH480-60
Colomn size		￠630 x 10
Colomn depth		36.6 m
Colomn oriented center distance		600*￠102
Colomn inclined range		front inclination 5° back inclination 3°
Walking stroke		1.8m
Climbing ability of pile frame		6°
Rotary	Rotary way	rotary motor
	Rotary angle	≤360°
	Rotary speed	0.25r/min
Main winch	Single pulling force	7T
	Motor power	22KW
	Increasing speed	2.0/2.6/3.2
Vice winch	Single pulling force	3T
	Motor power	13KW
	Increasing speed	20m/min
Overall dimension(L*W)		11.5m*6m
Total weight(T)		75

Screw Borehole Drilling Rig Max Depth 34meters Crawler Movement Way

Product Tags:

screw pile driver

bore pile machine

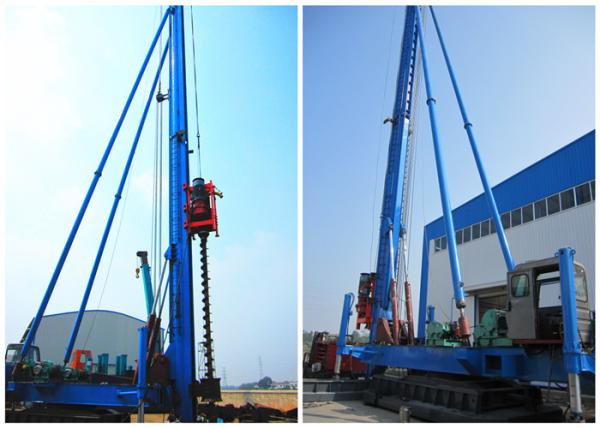

Screw Borehole Drilling Rig Max Depth 34meters Crawler Movement Way Images
